Parking v5 for Archicad - Allocated Parking with Zones and Accessories

Parking v5

Formerly known as Parking Lot Maker, the new Archibites Parking Version 5 brings a sophisticated level of customization to an object many ArchiCAD user’s have in their toolbox.

Intelligent Zoning & Assignment. With the introduction of Zones, assign individual spaces to specific user groups—such as visitors, staff, or residents—even within the same object instance. Schedule each zone with subtotals and grand totals.
Instant Project-Wide Calculations. Get precise data at your fingertips. Calculate total spaces per zone across your entire project instantly, making compliance checks and yield analysis faster.
The Power of Accessories. Version 5 introduces 11 built-in accessories, effectively giving you 11 objects in one. Choose from cars, library parts, bollards, wheel stops, accessible shared zones, to name a few. Each Accessory provided further customization for additional variations.
On the go control. Each space features a convenient plan-view hotspot, allowing you to toggle or customize accessories and/or zones for that specific spot without affecting the rest of the row.
Advanced Scheduling. In addition to zone quantities, schedules work harder. Beyond just counting spaces/stalls, you can now schedule specific accessories —perfect for generating accurate quantities for wheel stops, accessible spaces, bollards, etc.

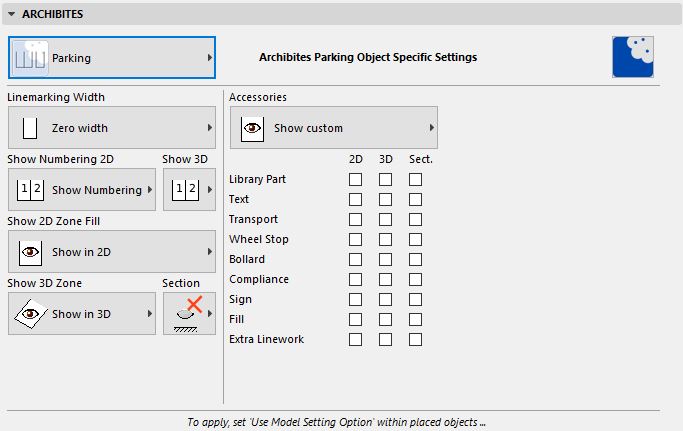

Global Visibility with MVO Integration. In-built Archibites Model View Options gives you visibility control across the entire project. This enables seamless documentation control for different drawing types and clash detection of clearances.
Inbuilt Standards. Full customisation of compliance clearances is provided to enable your local standards to be setup. Additional for Australian and New Zealand users local standards are built in for optional use. Visible in 3d, clash detection now acheivable.

The new version of Archibites Parking 5 is sure to develop into your new go to tool in your toolbox, developing on the already widely used original Parking Lot Maker.

Tested Archicad compatibility: 25, 26, 27, 28, 29

Product Version

License Type

Clear

Easy Placement

Build parking spaces to your project requirements

Continous spaces without island
Grouped spaces with island set to custom spaces per group.
Perpendicular, paralell, angled, radial perpendicular and radial paralell spaces
Full individual space dimension control
Incline along X or Y axis with true representation in both 3D and 2D.

Linemarking & Graphics

Display the spaces/stalls to your requirements

Space and Island line marking with open ends, closed back, closed front or fully closed
Lines as thin lines or with thickness
Space and island fills.
Space numbering continous or per group
All pen, fill and linetype controls.

Zones

Allocate spaces to user groups through inbuilt zones

Set up to 9 zones with fully customizable names and graphics
Set across all spaces or per space using floor plan controls on the go
Name and set colours for each zone
Controls display of fills and/or name text
Schedule individual zones (see below)

Accessories

Accessories allow many additional features to be shown

Choose from 11 accessories each with their own sub-settings. Choose from your own library part, text, car, bicycle, motorbike, wheel stop, bollard/post, compliance outlines, signs, weighted/thick line fills, and extra linework.
Assign multiple accessories to the same space or the same accessory to different spaces with different settings.
Each accessory has its own 2D/3D visibility control, dimensions, pens, fills, and materials.
Assign the accessory to show on all spaces, at a random density, or control for each space by assigning a specific hotspot position on the floor plan.
Advanced controls allow accessories to overwrite hide linemarking for that space or remove space from schedule counts.
Use compliance accessories in 3d for clash detection
Schedule accessories (see below)

3D Display & Section

3D display and surface controls for

Linemarking
Space/stall
Island
Numbering
Zones
Individual Accessories

Scheduling

Advanced Scheduling

Schedule each individual zone to get quantities of visitors, staff, residential, etc.
Schedule each individual accessory to get quantities of accessible spaces, wheel stops, etc.
Accessories have advanced settings to remove individual spaces from quantities such as shared spaces.
Archicad Interactive Schedule templates for Parking Allocation and Accessories is available here for download.
